SurClean’s strength is in our laser beam delivery systems. Precisely focusing the laser allows us to remove even tough coatings with speed and precision. Each application calls for a unique tool, and our products are flexible enough to tackle most any coating removal or surface cleaning challenge.

Applications:
• Paint removal & de-coating
• Surface preparation for adhesive bond and coating
• Mold removal
• De-oiling
• Surface structuring
• Restoration of stone, brick and concrete
• Sensitive substrate cleaning, i.e. CFRP
• Corrosion cleaning

Features:
• Compatibility with a variety of high-power lasers from multiple OEM laser companies
• Deadman Switch Operator Safety: Automatic laser shutdown when not on target (available upon request)
• Adaptable, ergonomic design: adjustable for left or right handed operators
• Quick disconnect for cables and hoses
• Easy conversion to robot mount: other mounts available upon request
• HEPA self-cleaning Pulse-Bac vacuum exhaust for a debris particulate collection
• Laser Process Control (LPC) for selective layer by layer removal to prevent damage to the base material

Applications:

Paint removal & de-coating
Surface preparation for adhesive bond and coating
Mold removal
De-oiling
Surface structuring
Restoration of stone, brick and concrete
Sensitive substrate cleaning, i.e. CFRP
Corrosion cleaning

Features:

Compatibility with a variety of high-power lasers from multiple OEM laser companies
Deadman Switch Operator Safety: Automatic laser shutdown when not on target (available upon request)
Adaptable, ergonomic design: adjustable for left or right handed operators
Quick disconnect for cables and hoses
Easy conversion to robot mount: other mounts available upon request
HEPA self-cleaning Pulse-Bac vacuum exhaust for a debris particulate collection 
Laser Process Control (LPC) for selective layer by layer removal to prevent damage to the base material

Mobile Unit

A white truck with a trailer attached to it.

Specifications

Fiber Cable lengths from 10 to 30m (additional lengths available upon request)
Adjustable Scan Rate up to 30m/s
Power Range: 1-10 kW
Wavelength Range: 250-1550nm
Focus Range: 250-1000mm
Adjustable Scan Width: 25-200mm
Lightweight Design: 15-17lb without the cabling

Spec Sheet

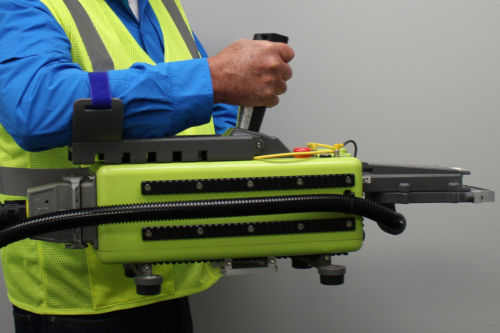

SMR Optic

Specifications

Fiber cable lengths from 10m - 30m. Special lengths available upon request.
Adjustable scan rate up to 30m/s.
Power range: 1 - 10kW
Wavelength range: 250-1550nm
Focus range: 250 - 1000mm
Adjustable scan width: 25-200mm
Lightweight Design: 15-17lb without cabling

Spec Sheet

HyperDisc (TM) High Speed Scanner

Specifications

Fiber and cable lengths starting at 10m and common length of 30m. Special lengths available upon request.
Scan rates exceeding 60m/s
Power range: 20W - 15kW
Wavelengths: 255 - 1550nm
Focus Range: 100mm - 1m
Width adjustable: 5 - 150mm
Can be used with the following leading laser brands: Trumpf, IPG, Rofin, Laserline, Teradiode, Coherent and many more not listed.

Spec Sheet

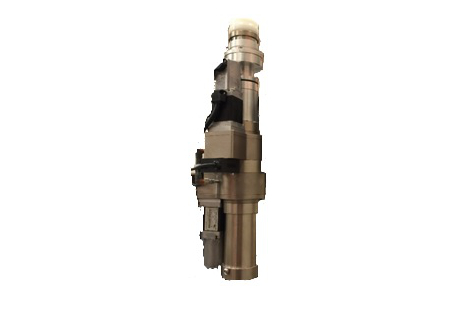

DMR Optic

Specifications

Fiber and cable lengths starting at 10m and common length of 30m. Special lengths available upon request.
Scan rates exceeding 30m/s
Power range: 20W - 10kW
Wavelengths: 255 - 1550nm
Focus Range: 100mm - 450mm
Width adjustable: 5 - 150mm

Spec Sheet

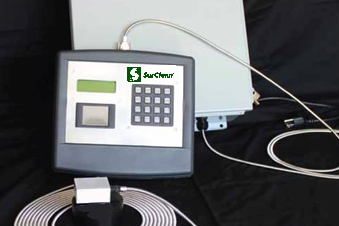

LPC Sensor

Specifications

Online Monitoring of the laser beam ablation process
Detects paint, primer and base materials
Real-time information
Contactless
Non-destructive
CW and PULSED laser modes

Spec Sheet

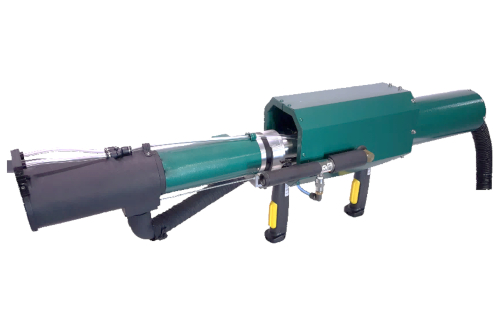

OTS Speed Scanner

Specifications

Fiber and cable lengths starting at 10m and common length of 30m. Special lengths available upon request.
Scan rates exceeding 60m/s
Power range: 20W - 15kW
Wavelengths: 255 - 1550nm
Focus Range: 100mm - 1m
Width adjustable: 5 - 150mm
Can be used with the following leading laser brands: Trumpf, IPG, Rofin, Laserline, Teradiode, Coherent and many more not listed.
